Telescopic Props Jacks are a versatile and cost-effective solution for supporting various types of floors, temporary beams, frameworks, slabs, columns, beams, and walls.
Telescopic prop jacks are available in both U-head and base plate designs, providing versatile support for various construction needs.
These props consist of a few components, including a base plate, outer tube, inner tube, swivel nut, and G Pin, and their simple and flexible structure makes them easy to assemble and disassemble.
| Sr. No. | Length in (meter) | Weight in Kg |
|---|---|---|
| 1 | 2 x 2 meter | 17.5 kg |
| 2 | 2 x 3 meter | 21 kg |
| 3 | 3 x 3 meter | 25 kg |

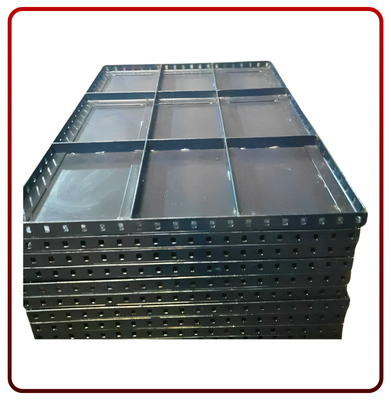

Acrow plates are a type of steel plate used in construction projects to distribute loads and provide support under heavy loads.
The raw materials used meet ISI standards and are of high quality. They are typically square or rectangular in shape and have a series of holes along their perimeter to allow for the insertion of bolts or screws.
| Sr. No. | Size LXB in (mm) | Weight in Kg |
|---|---|---|
| 1 | 1250 x 200 mm | 12 kg |
| 2 | 1250 x 300 mm | 16 kg |
| 3 | 1250 x 450 mm | 25 kg |
| 4 | 1250 x 500 mm | 28 kg |
| 5 | 1250 x 600 mm | 32 kg |
| 6 | 1250 x 1000 mm | 60 kg |

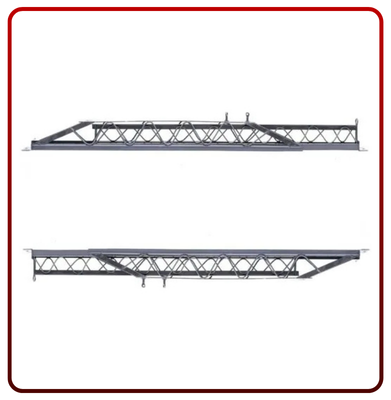

Acrow spans are used in shuttering to support slab formwork and beams during concrete casting. They are adjustable, durable, and ideal for accommodating varying construction heights.
They serve as temporary supports for lintels, brickwork, steel beams, and cantilevered slabs during construction or repair work.
They are also commonly used as self-supporting runners in shuttering systems, installed beneath shuttering plates or floor form panels.
Due to their versatility, Acrow spans are widely used in various construction scenarios, including formwork support, circular access scaffolding, and general access scaffolding.
| Sr. No. | Size in (Feet) | Weight in Kg |
|---|---|---|
| 1 | 2.5 x 2.5 Feet | 40 kg |

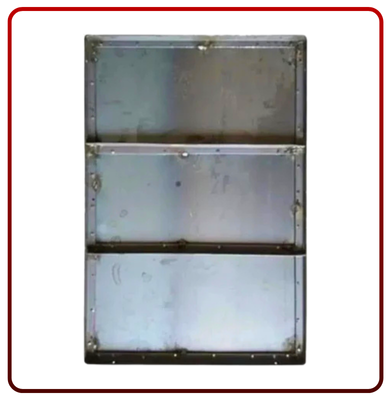

Shuttering Plates provide Structural Support When used with scaffolding and props, shuttering plates help create strong platforms or molds to support concrete during pouring. These plates are stronger, more durable, and reusable, making them a cost-effective option for construction projects.
It is play a vital role in modern construction by maintaining the shape and structural integrity of concrete elements. Their high strength, reusability, and resistance to wear and tear make them an indispensable tool in building construction. Proper maintenance and storage of shuttering plates can further extend their lifespan, making them a reliable and cost-efficient solution for multiple construction cycles.
| Sr. No. | Size in (mm) | Weight in Kg | Material |
|---|---|---|---|
| 1 | 600 mm x 900 mm | 15 kg | Mild Steel |

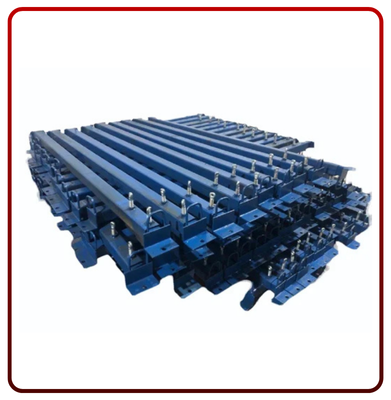

An MS Box Span is a telescopic steel beam used for formwork support. It is constructed using two nested mild steel box sections (outer and inner), allowing it to be adjustable in length. It is designed to carry heavy loads during concrete casting.
Outer Box Section – Heavy-duty mild steel box with welded end plates and locking system.
Inner Box Section – Telescopes inside the outer section to adjust span length.
Locking Pin/Bolt – Ensures secured position at the required length.
End Plates – Welded plates for placing loads or for connecting with supports like Adjustable Props or U-heads.
| Sr. No. | Size in (meter) | Weight in Kg |
|---|---|---|
| 1 | 2 x 2 meter | 24 kg |
| 2 | 2.5 x 2.5 meters | 31 kg |

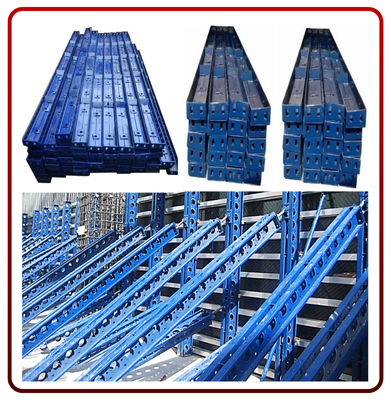

MS Soldier is an important component in heavy-duty concrete wall forming. It provides stability and support to ensure the concrete wall is constructed with precision and strength.
Alignment: Helps in maintaining plumb and straight wall surfaces.
Reusability: High – designed for multiple reuse cycles.
Connections: Compatible with standard waler, panel, and tie rod systems.
Accessories: Bolt holes, slots for quick assembly with pins and clips.
| Sr. No. | Size in (mm) | Weight in Kg | Angle Size | Thickness | Hole Size | Shape |
|---|---|---|---|---|---|---|
| 1 | 2500 x 100 mm | 24 kg | 50 x 5 mm | 5 mm | 13 mm x 23 mm | Rectangular |

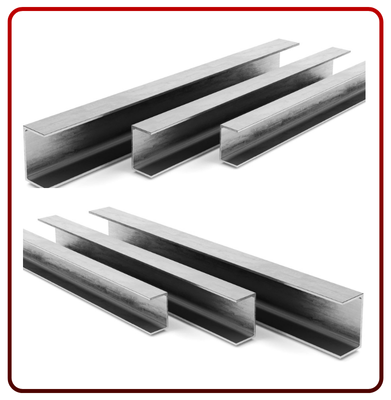

ISMC (Indian Standard Medium Channel) are steel sections with a C-shaped cross-section.
These are widely used in construction and structural applications, particularly for:
Roofing frameworks
Structural supports
Frames and purlins
Bracing and platforms
| Sr. No. | Height in (Feet) | Weight in Kg |
|---|---|---|
| 1 | 8 Feet | 18.4 kg |
| 2 | 9 Feet | 20.7 kg |
| 3 | 10 Feet | 23 kg |
| 4 | 20 Feet | 46 kg |

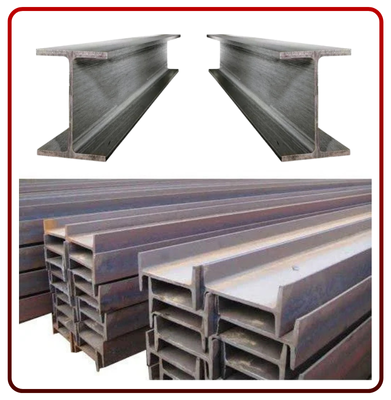

ISMB (Indian Standard Medium Beam) is a structural steel beam with an I-shaped cross-section. These beams are widely used in construction for load-bearing applications, including roof structures, floor systems, and framing systems.
| Sr. No. | Height in (Feet) | Weight in Kg |
|---|---|---|
| 1 | 8 Feet | 18.4 kg |
| 2 | 9 Feet | 20.7 kg |
| 3 | 10 Feet | 23 kg |
| 4 | 20 Feet | 46 kg |
